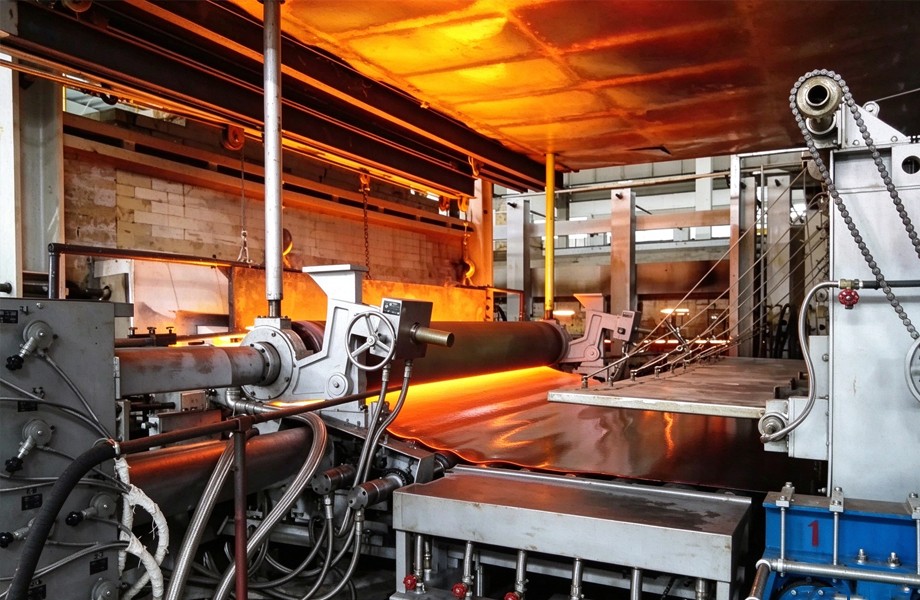

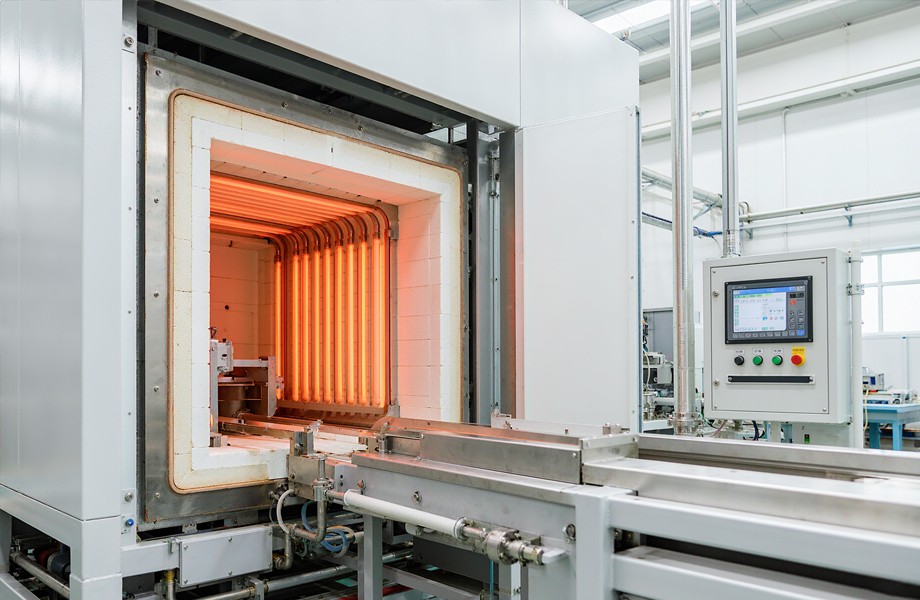

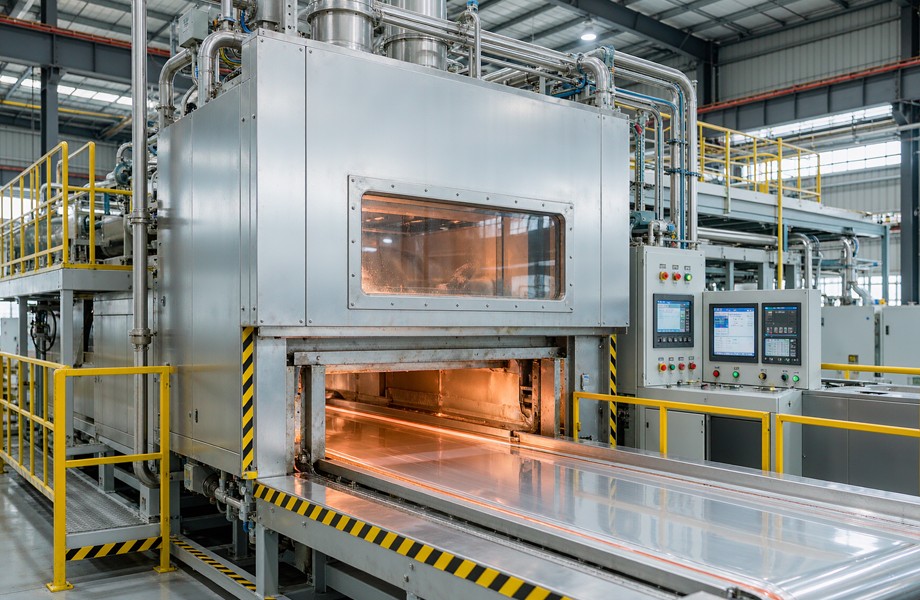

为玻璃电熔及相关炉用加热工况提供隔离电源。现有资料包含干式、油浸式及多抽头输出设计。选型需区分电极加热与硅钼棒等加热元件，不应把不同负载的启动特性混用。请提供炉体电气图、负载类型及从启动到正常运行的电压电流要求。
Oil free, with strong fire resistance, eliminating the risk of oil leakage; Capable of withstanding short-circuit current and overvoltage, and adapting to harsh environments.
Using environmentally friendly materials, low noise and no pollution, to assist in the construction of a green power grid.
Efficient cooling system ensures that the equipment maintains low temperature during long-term operation, effectively extending the service life of the equipment.
Humanized design, simple operation, convenient and fast daily inspection and maintenance, significantly reducing operating costs.
Durable shell design, impact resistance, corrosion resistance, able to adapt to various complex and harsh working environments.
Modular structure design, supporting quick disassembly and assembly, combined with intelligent monitoring system, making operation and maintenance work more worry free and effortless.
| 型号 | 额定容量 (KVA) | 相数 | 额定电压 | 联结组 标号 | 损耗（W） | 空载 电流 | 阻抗 电压 | 外型尺寸(mm) 长×宽×高 | ||
| 一次（V） | 二次（V） | 空载 | 短路 | |||||||
| HDG-10/0.5 | 10 | 1 | 220.380 | 根据用户要求可选择 | lio | 80 | 250 | 3.5 | 3.5 | 400x350x530 |
| HDG-12/0.5 | 12 | 1 | 220.380 | lio | 85 | 280 | 3.5 | 3.5 | 400x350x550 | |
| HDG-16/0.5 | 16 | 1 | 380 | lio | 100 | 400 | 3.2 | 3.5 | 430x350x550 | |
| HDG-20/0.5 | 20 | 1 | 380 | lio | 120 | 450 | 2.85 | 3.5 | 450x380x560 | |
| HDG-25/0.5 | 25 | 1 | 380 | lio | 130 | 480 | 2.8 | 3.5 | 450x400x580 | |
| HDG-30/0.5 | 30 | 1 | 380 | lio | 150 | 570 | 2.6 | 3.5 | 470x400x600 | |
| HDG-40/0.5 | 40 | 1 | 380 | lio | 160 | 620 | 2.5 | 3.8 | 500x400x600 | |
| HDG-50/0.5 | 50 | 1 | 380 | lio | 180 | 700 | 2.5 | 3.8 | 530x420x630 | |
| HDG-80/0.5 | 80 | 1 | 380 | lio | 200 | 800 | 2.1 | 4 | 620x400x650 | |
| HDG-120/0.5 | 120 | 1 | 380 | lio | 360 | 1320 | 1.8 | 4 | 750x420x680 | |
| HSG-20/0.5 | 20 | 3 | 380 | D.y11 | 100 | 460 | 3.2 | 3.5 | 550x320x480 | |
| HSG-25/0.5 | 25 | 3 | 380 | D.y11 | 160 | 640 | 3.1 | 3.5 | 580x350x500 | |
| HSG-30/0.5 | 30 | 3 | 380 | D.y11 | 180 | 720 | 2.8 | 3.5 | 600x380x550 | |
| HSG-35/0.5 | 35 | 3 | 380 | D.y11 | 200 | 840 | 2.6 | 3.5 | 650x380x550 | |
| HSG-40/0.5 | 40 | 3 | 380 | D.y11 | 220 | 920 | 2.5 | 3.5 | 680x400x580 | |
| HSG-50/0.5 | 50 | 3 | 380 | D.y11 | 300 | 1400 | 2.1 | 3.5 | 750x400x600 | |
| HSG-60/0.5 | 60 | 3 | 380 | D.y11 | 340 | 1600 | 1.9 | 3.8 | 780x400x650 | |
| HSG-80/0.5 | 80 | 3 | 380 | D.y11 | 380 | 1900 | 1.8 | 3.8 | 820x430x680 | |
| HSG-120/0.5 | 120 | 3 | 380 | D.y11 | 480 | 2160 | 1.6 | 4 | 950x450x700 | |
| HSG-150/0.5 | 150 | 3 | 380 | D.y11 | 560 | 2480 | 1.5 | 4 | 1020x500x800 | |
| HSG-200/0.5 | 200 | 3 | 380 | D.y11 | 620 | 2600 | 1.3 | 4.5 | 1100x500x950 | |
| HSG-250/0.5 | 250 | 3 | 380 | D.y11 | 820 | 3560 | 0.8 | 4.5 | 1150x520x1000 | |
| HSG-315/0.5 | 315 | 3 | 380 | D.y11 | 920 | 5200 | 0.7 | 4.5 | 1200x550x1150 | |
| HSG-400/0.5 | 400 | 3 | 380 | D.y11 | 1120 | 6000 | 0.6 | 4.5 | 1300x550x1200 | |
| HSG-500/0.5 | 500 | 3 | 380 | D.y11 | 1140 | 6900 | 0.58 | 4.6 | 1350x580x1250 | |
| HSJ-630/0.5 | 630 | 3 | 380 | D.y11 | 1450 | 7100 | 0.58 | 4.6 | 1750x1150x1700 | |
| HSJ-720/10 | 720 | 3 | 10000 | D.y11 | 1600 | 7500 | 0.56 | 4.6 | 1820x1200x1850 | |
| HSJ-850/10 | 850 | 3 | 10000 | D.y11 | 1750 | 8250 | 0.56 | 4.6 | 1850x1360x1850 | |
| HSJ-1000/10 | 1000 | 3 | 10000 | D.y11 | 1950 | 10800 | 0.56 | 4.8 | 2000x1350x2015 | |
| HSJ-1125/10 | 1125 | 3 | 10000 | D.y11 | 2200 | 12000 | 0.56 | 4.8 | 2065x1350x2075 | |
| HSJ-1600/10 | 1600 | 3 | 10000 | D.y11 | 25000 | 15000 | 0.54 | 4.8 | 2150x1400x2150 | |
